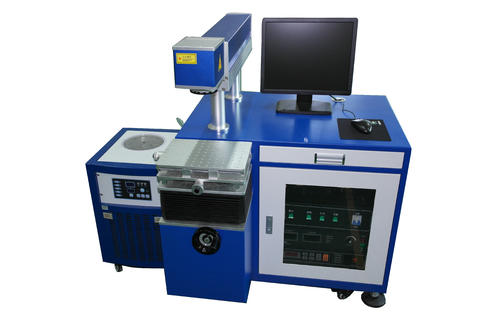

Contact Us WNK-75W Semiconductor Laser Marking Machine
2020/7/7 16:41:25 View：
1390
Technical parameters:
| Parameters / Model | DP ( 50W ) |
| Max. laser power | 50W |
| Laser wavelength | 1064nm |
| Laser beam quality m2 | <6 |
| Frequency of Q-switched modulation | ≤50KHz |
| Marking range | 100mm×100mm/175mm×175mm |
| Marking depth | 0.3mm |
| Marking speed | ≤9000mm / s |
| Min. line width | 0.1 mm |
| Min. character | 0.3 mm |
| Re-precision | ±0.002 mm |
| Holistic power | 1.5KW |
| Power supply | AC220V / 50HZ / 10A |
| Cooling method | Water |
